Premium PVC Clear Hose | ZJHose
PVC Clear Hose
Transparent PVC Hose is nontoxic and resistant to weather, low pressure and erosion. The smooth tube is resistant to collection and blockage. The clear PVC wall makes you can see the materials flowing through it. Besides, the clear flexible plastic tubing looks beautiful with colorful symbol lines on the surface.
Clear Transparent Hose Application
PVC transparent hose is used for conveying water, oil and gas under normal working conditions in factory, farm, ship building and family.
Clear Flexible Hose Features
- Flexible, light in weight, transparent
- Food grade, nontoxic and odourless
- Anti erosion and abrasion
- Anti aging, long working life
Product Parameters
PVC Clear Hose Specification
| ID | OD | WP | BP | L | Weight | |||
| inch | mm | mm | psi | bar | psi | bar | m/roll | kg/roll |
| 1/4″ | 6 | 8 | 21.75 | 1.5 | 65.3 | 4.5 | 100 | 2.90 |
| 5/16″ | 8 | 10 | 21.75 | 1.5 | 65.3 | 4.5 | 100 | 3.70 |
| 3/8″ | 10 | 12 | 21.75 | 1.5 | 65.3 | 4.5 | 100 | 4.60 |
| 1/2″ | 12 | 15 | 14.5 | 1.0 | 43.5 | 3.0 | 50 | 4.20 |
| 5/8″ | 16 | 18 | 14.5 | 1.0 | 43.5 | 3.0 | 50 | 5.15 |
| 3/4″ | 19 | 22 | 14.5 | 1.0 | 43.5 | 3.0 | 50 | 6.35 |
| 1″ | 25 | 30 | 14.5 | 1.0 | 43.5 | 3.0 | 50 | 14.25 |
| 1-1/4″ | 32 | 38 | 14.5 | 1.0 | 43.5 | 3.0 | 40 | 17.40 |
| 1-1/2″ | 38 | 44 | 14.5 | 1.0 | 43.5 | 3.0 | 40 | 20.40 |
| 2″ | 50 | 58 | 14.5 | 1.0 | 43.5 | 3.0 | 40 | 35.80 |
Production Details
Transparency in Craftsmanship – How We Build Excellence

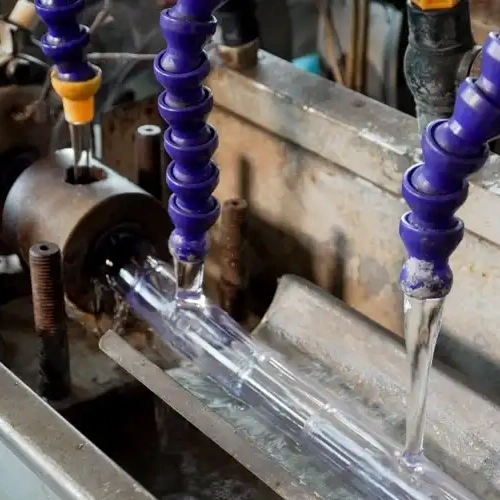

- Precision Extrusion: Seamless inner layer for turbulence-free flow.
- Rigorous Testing: Hydrostatic pressure checks, bend-cycle validation, and abrasion testing (ISO 1401 compliant).
