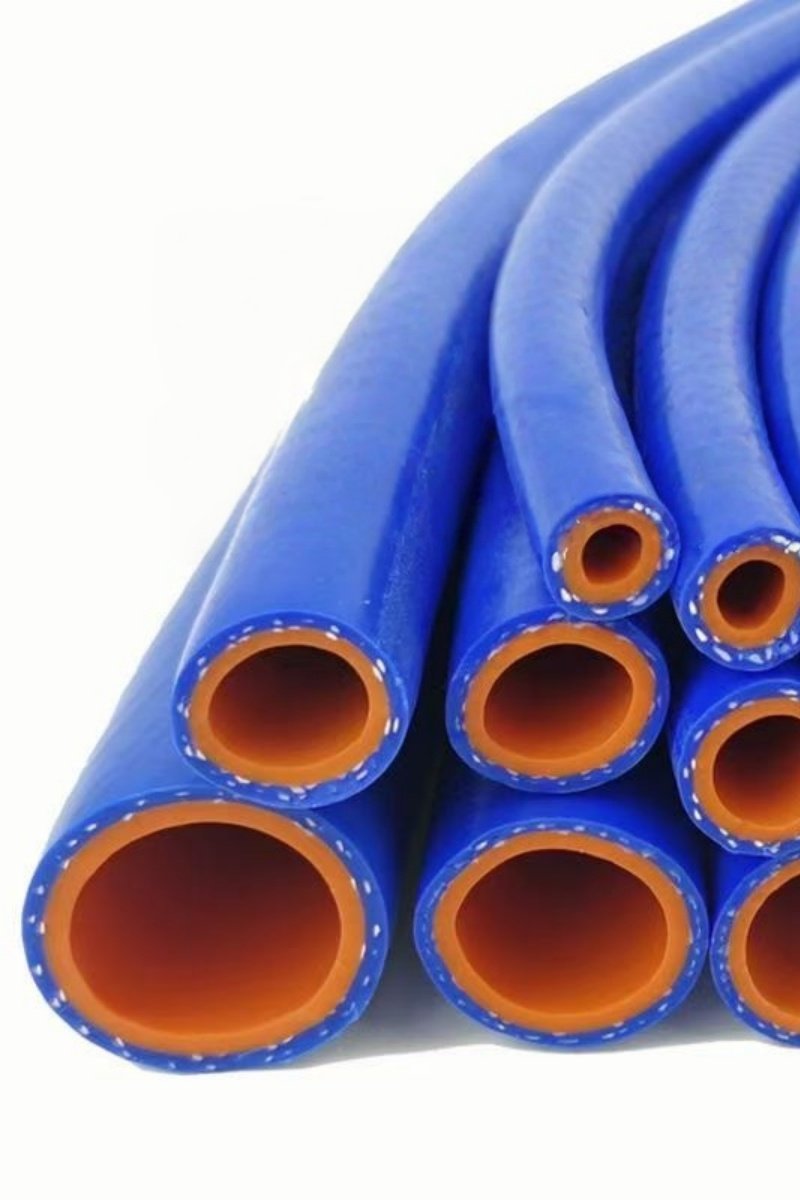

Silicone Heater Hose

ZJHose silicone heater hose adopts top-grade silicone and is manufactured using the extrusion method. With 2 layers of high-tensile polyester reinforcement, the heater hose is highly flexible with high strength.

ZJHose offers you a high-temperature silicone heater hose which can work at a maximum of 220°C.

Silicone Heater Hose

Tube: 100% High quality silicone

Reinforcement: Polyester/aramid Braid

Cover: Silicone

Color: Black, red, blue, green, yellow

Temperature: -40℃ to +220℃ (-40℉ to +428℉)

Silicone Heater Hose meets the requirements of SAEJ20R3 Class A specification. The silicone hoses are reinforced with 1-ply polyester fabric. The blue silicone heater hose is designed for elevated temperature applications, with an operating range from -54°C to +200°C, making it well-suited for coolant fluid service and vacuum line service.

Blue Heater Hose is commonly used as air intake connections, supercharger connections, turbo and intercooler drain lines, and radiator and heater core connections in high-temperature or extreme working conditions. It is used in performance motorcycles and vehicles, marine wet exhaust systems, commercial trucks and buses, induction and cooling systems, agricultural and off-highway vehicles, all turbo diesel applications, food and beverage connections, and general manufacturing industries.

Silicone Heater Hose Application

Mainly used in mine hydraulic support, oil exploration, and suitable for engineering construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery, and various machine tools.

Product Parameters

Silicone Heater Hose Specification

ID		Layer	Thickness	ID		Layer	Thickness
inch	mm	ply	mm	inch	mm	ply	mm
5/16″	8.0	1 / 2	3.5-4.5	3/4″	19.0	1 / 2	4-5
3/8″	10.0	1 / 2	3.5-4.5	7/8″	22.0	1 / 2	4-5
1/2″	12.0	1 / 2	3.5-4.5	1″	25.0	1 / 2	4-5
9/16″	14.0	1 / 2	3.5-4.5	1-1/8″	28.0	1 / 2	4-5
5/8″	16.0	1 / 2	3.5-4.5	1-1/4″	32.0	1 / 2	4-5

Production Details

Our silicone Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive silicone hose solutions.
